Perfect for paper sizes up to
17.5 x 22.5" with the built-in platter.
Easily accommodates
parent-size sheets up to 26 x 40" when used with the optional
expansion platter.
Can count folded, bound, and
die cut pieces as well
Features
Specific to PartsCounting --
Ideal for counting assembly
components as well as finished goods.
Perfect for larger size parts
of any type: metal, plastic, fiber, etc.
Examples: castings,
stampings, hardware, electronics, etc.

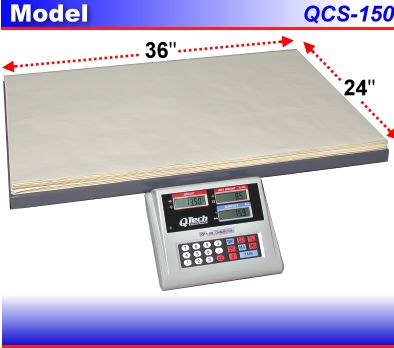

The QCS-150 may also be used as a Weighing/Shipping Scale.
QCS
Specifications:
Weight Capacity:
150 lb.
Platter Size:
14 3/4 x 20 1/2"
Internal
Resolution:
1 part in 600,000
Display Resolution:
.05 lbs./5 grams
Power:
110/120 Volts or Rechargeable
6V Internal Dry Cell battery (provided)
Dimensions:
25" (D) x 14 3/4" (W) x 5"
(H) (Display Console is elevated
approx. 26" when positioned on the mounting pole)
Weight:
37 lbs.
Options:
• Steel Expansion Platter for
counting parent/oversize sheets
•
DYMO Label Printer: $399.
• RS-232C Serial Port for data
output to a computer or printer:
$50.00
• Data Transfer Program
automatically transfers weight
and count data to a personal
computer for import into a
spreadsheet, database, United
Parcel World Ship software, or
for printer output. FREE!
Size: 330 KB Zip file
For Windows only
RS-232C Serial Port required: $50.
